Simply Cell | Skylight | Honeycomb Blinds

Energy Saving Designer Blind System for Skylights + Roofs

Honeycomb | Skylights + Roofs

Blinds by Peter Meyer offer the most diverse and extensive range of Skylight blinds in Australia.

Designed and manufactured in Germany, our Simply Cell range includes over 190 highly insulating honeycomb fabrics available on all of our Skylight systems.

The main honeycomb fabric collection includes a stunning array of colours with matching translucent, blockout and printed designs that include an impressive range of florals and textures rarely seen in the Australian market.

Our impressively compact Simply Cell skylight honeycomb blinds include 4 main model types.

skylight blinds

New Release
Honeycomb Blind | New System

Note: ‘System’ video shows Pleated Blinds. Our Honeycomb Cellular Blind Fabrics use an identical system.

New Release
Honeycomb Blind | 190 New Fabrics

New System Release
Skylight| Honeycomb Blind | Selector

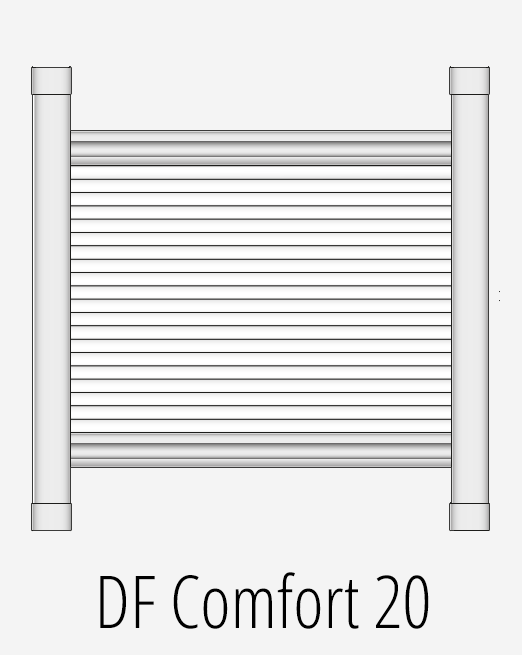

DF Comfort 20 skylight honeycomb blinds

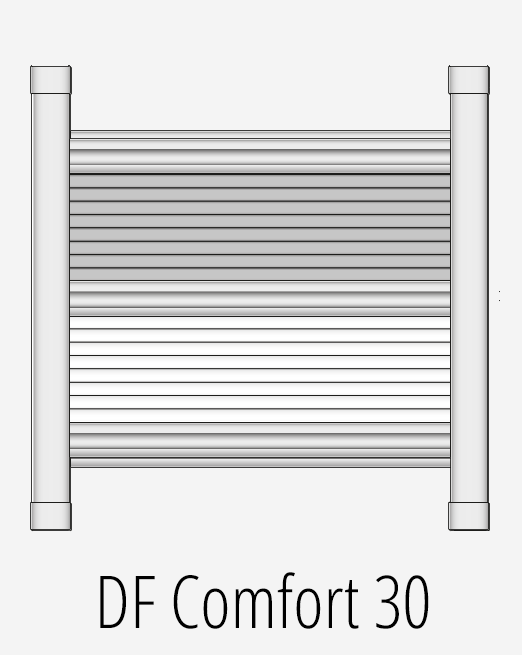

DF Comfort 30 skylight honeycomb blinds
DF 20 skylight honeycomb blinds

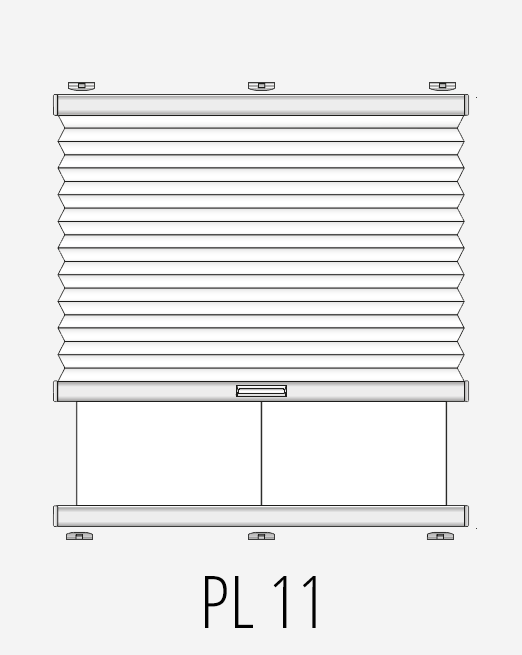

PL 11 skylight honeycomb blinds

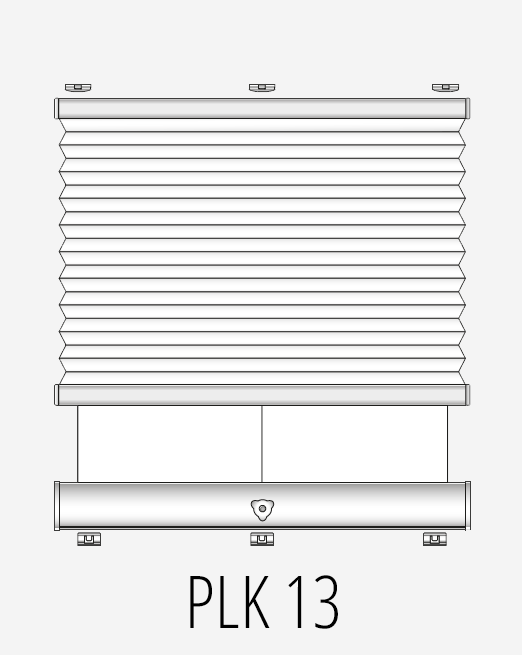

PLK 13 skylight honeycomb blinds

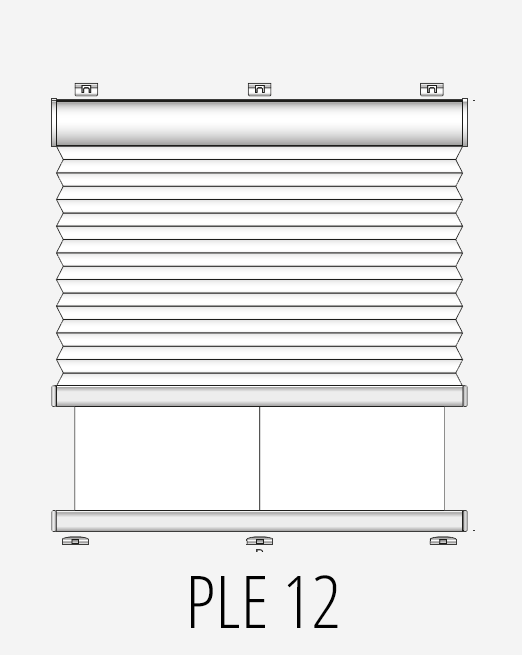

PLE 12 skylight honeycomb blinds

New
Skylight| DFC Blinds with Side Channels + DF Blinds with side Cover Strips

DF Skylight honeycomb blind can be used to fit both VELUX and FAKRO Skylight windows as well as being custom made to suit made to measure skylight windows.
With a single Velux window model number, we can easily make a blind to perfectly fit your window.

DF systems include three different ranges.
DF 20 | with side channels and operating from bottom up and top down;
DF Comfort 20 | with slightly larger side channels and an operating handle that can attach an operating rod; and the
DF Comfort 30 | that also operates bottom up top down with side channels – plus the added benefit of being able to house 2 fabrics on the one Velux style window, such as a blockout and translucent.

Benefits
German quality design + manufacturing
Over 190 honeycomb fabrics
Highly insulating
Very compact system
Multiple wand lengths
Side channels available for complete blockout
Slimline rails
Velux window specific range

DF system skylight honeycomb blinds

New
Skylight| PL Blinds for Rectangular Windows

Our PL range can all span up to 1500mm wide x 3500mm in projection.

PL 11 | The entry level offering operated via Hand or Wand.
PLK 13 | Crank operated PLK.
PLE 12 | Adding luxury at the premium end, is our top of the range motorised
PLE12 Skylight system controlled by either a remote control or home automation system.

Benefits
German quality design + manufacturing
Over 190 honeycomb fabrics
Highly insulating
Very compact system
Multiple wand lengths
Slimline rails
Velux window specific range

PL system skylight honeycomb blinds

Skylight| Honeycomb Blind | Showcase

Blinds by Peter Meyer

New
DF Comfort 20
| Skylight | with Side Channels

Hand or Operating Rod controlled with Side Channels
Operating Rails are ergonomically design to allow your fingers to fits into the rail to operate it into your desired position.
An Operating Rod can also be used to move blind into position. Has side channels to keep the blind in place and for added light blockage.
Additional light control due to moveable upper and lower rails. Can be fitted into the window beading only and cannot be face fitted.
Designed for Skylight windows up to a max of 45 degrees.

Ideal for:
Skylight windows up to 1500*1500 or 1200*1900
Velux and Fakro skylights windows up to 45°.

Note:
Simply provide us with the model number of the skylight and we can custom make your blinds to this size.
Also suitable for custom skylight windows that are on an angle of no more than 45 degrees.

DF comfort 20 skylight blind diagram
DF comfort 20 size and height
DF comfort 20 dimensions

Notes
Also available with perating rod (extra charge).
Also available with magnetic fixing and brush strip (extra charge).
For roof windows with sloped or straight window rebate possible.
Fitting only inside the window rebate.
This blind style is designed for roof windows at a maximum angle of 45°!

DF comfort 20 colours

New
DF Comfort 30
| Skylight | with Side Channels

Hand or Operating Rod controlled Day/Night Blind with Side Channels
Day/Night solution by combining blockout with sheer or light filtering fabrics.
Operating rod can be used to move blind into position.
Has side channels to keep the blind in place and for added light blockage.

Ideal for:
Skylight windows up to 1500*1500 or 1200*1900
Velux and Fakro skylights windows up to 45°.

DF Comfort 30 skylight blinds diagram
DF comfort 30 size and height
DF comfort 30 dimensions

operating rodNotes
Also available with operating rod (extra charge).
Also available with magnetic fixing and brush strip
(extra charge).
For roof windows with sloped or straight window rebate possible.
Fitting on inside the window rebate.
This blind style is designed for roof windows at a maximum angle of 45°!

F2 freehanging blind colours

New
DF 20
| Skylight | with Side Channels

Hand or Operating Rod control
Our Simplest version of the DF range. Operated via wand or operating handles on the top and bottom profiles.
Can be operated from the Top Down or Bottom Up.
Operating rod can be used to move blind into position or it can also be hand operated if the skylight is within reach.
Held in place by tension strings.
Designed for Skylight windows up to a max of 45 degrees.

Ideal for:
Skylight windows up to 1500*1600.
Velux and Fakro skylights windows up to 45 degrees.

Note:
Simply provide us with the model number of the skylight and we can custom make your blinds to this size.
Also suitable for custom skylight windows that are on an angle of no more than 45 degrees.

DF 20 skylight blinds diagram
DF 20 skylight blind size and height
DF 20 dimensions

Notes
Also available with operating rod (extra charge).
No fitting on the casement possible.
This blind style is designed for roof windows at a maximum angle of 45°!

DF 20 colours

New
PL 11
| Skylight | Hand or Wand Operation

Our simplest skylight solution available.
The PL11 model can be hand operated if you can reach the skylight or operated via an operating rod to
easily move blind into position and can be fitted horizontally or on a slope.
Supported by fixed tension wires which are UV-resistant, black coated steep wire.
Can be motorised (PLE12) or crank operated  (PLK13)

Ideal for:
Skylight windows and conservatories.

PL 11 skylight blind diagram
PL 11 skylight blinds size and heights
PL 11 skylight blinds dimensions

Notes
Optionaly with operating rod (extra charge).
Horizontal or inclined fitting possible.
Fixed tension wires, UV-resistant, made of black coated steel wire.
Max. distance 25cm.

PL 11 colours

New
PLK13
| Skylight | for Rectangular Windows

Crank operated and can be fitted horizontally or on a slope.
Supported by fixed tension wires, which are UV-resistant, black coated steep wire. Can be motorised.

Ideal for:
Skylight windows and conservatories or for skylights over a void accessed off a landing allowing easy access to crank into place.
The perfect stepping stone items between wand/hand operated and motorised.

PLK 13 skylight blinds diagram
PLK 13 skylight blind size and height
PLK 13 skylight blind dimensions

Notes
Available with manual crank (extra charge) or operating rod for battery motor (extra charge).
Horizontal or inclined fitting possible.
Hanging and operation available on opposite sides (fig.) or on the same side (please specify).
Fixed tension wires, UV-resistant, made of black coated steel wire. Max. distance 25cm.
Operation available left, centre (fig.) or right (please specifiy).

PLK 13 colours

New
PLE 12
| Skylight | Motorised

Motorised with 24 V low voltage motor.
Operated via remote control or integrated with home automation. Can be fitted horizontally or on a slope
and is supported by fixed tension wires which are UV-resistant, black coated steep wire.
Can be crank operated (PLK13) or wand oerated (PL11)

Ideal for:
Skylight windows and conservatories where accessing with a wand or rod isn’t possible.

PLE 12 skylight blind diagram
PLE 12 skylight blind size and height
PLE 12 skylight blind dimensions

Notes
Horizontal or inclined fitting possible.
Hanging and operation available the same side (fig.) or on opposite sides (please specify).
Fixed tension wires, UV-resistant, made of black coated steel wire. Max. distance 25cm.
Not suitable for installation in humid areas and damp locations.
Cable outlet available on left or right side (please specify).

PLE 12 colours

New
Operation
| Skylight Blind | Options

There are special model types and operating options available for Skylight blinds.

handle bar for DFC

Handle bar
(for DFC 20, DFC 30)

Orders for DFC blinds are generally delivered with this handle bar.

Operation with operating rod possible

New
Operating Rod
| Skylight Blinds

The operating rod with adjustable joint is perfect for hard-to-reach and large windows.

operating rod without joint

Operating rod without joint

in combination with operating handle or design handle (PL)

operating rod with joint

Operating rod with joint

in combination with operating handle
or design handle (VS, PL)

operating rod DFC

Operating rod DFC/VS 2 Slide/VS 2 Slide Comfort

for DF Comfort-, VS 2 Slide and
VS 2 Slide Comfort blinds with
handle bar

Crank

Crank

for Simply Cell blinds with crank drive
(PLK 13)

New
Colours
| Rail + Plastic Components

Rail colour

Plastic colour

20 white matt
(powder-coated)

20 white

02 silver
(anodised)

03 grey

05 black-brown matt
(powder-coated)

05 black-brown

26 bronze
(anodised)

26 bronze

24 anthracite matt
(powder-coated)

24 anthracite

09 silver brushed
(brushed and anodised)
VS 2 only (extra charge)

03 grey

03 grey matt
(powder-coated)
VS 2 Slide, VS 2 Slide Comfort and DF
Comfort only

03 grey

New
Honeycomb Fabrics Range
| 190 Designer Colour + Patterns

Australia's most comprehensive collection of Honeycomb Cellular Blind fabrics.

Our stunning new collection of Honeycomb fabrics offers  a solution for ever Residential or Commercial application. Architects, Designers & Decorators can select from the 190 on-trend fabrics to compliment all architectural & design styles.

The honeycomb & cellular construction of our Simply Cell fabrics provides very significant thermal and energy cost saving benefits.

Simply Cell | Honeycomb Cellular Range

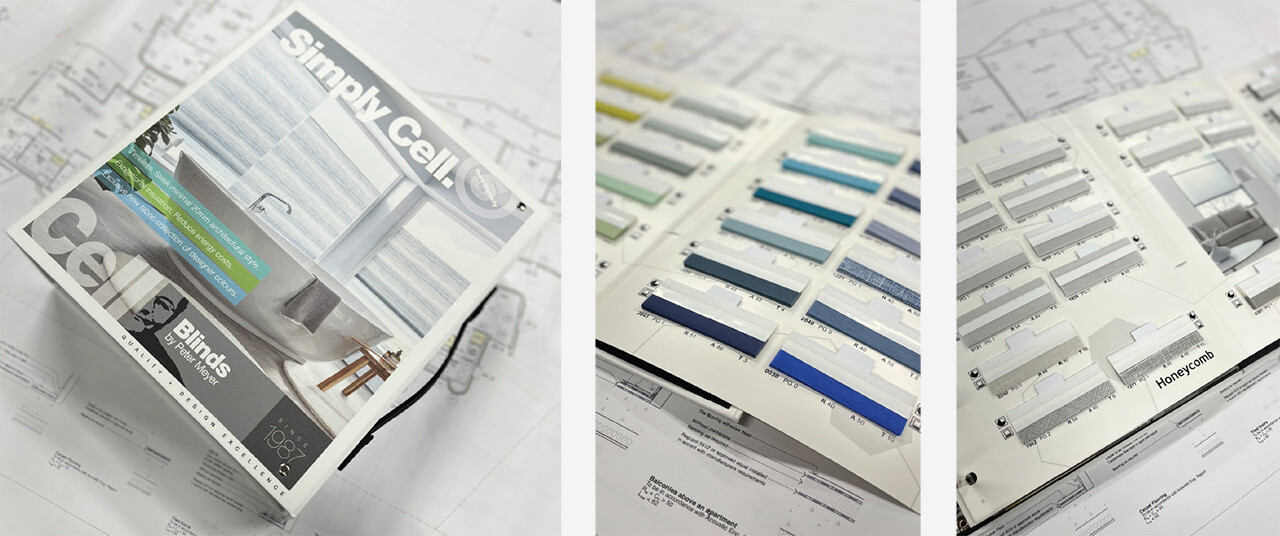

simply cell fabrics range
simply cell fabrics brochure

Downloads

Blinds by Peter Meyer complete brochure

Product & Technical Brochure

Simply Cell Honeycomb Blind System brochure

Product brochure

Simply Cell technical brochure

Simply Cell technical brochure
