Lamisol® III | External Venetian Blind
As Griesser’s best-selling External Venetian Blind, Lamisol® combines elegant design with advanced functionality for precise light control. Its Z-shaped slats allow for multiple tilt positions, reducing glare, optimising natural light, and improving indoor comfort. Available in 70mm and 90mm slat widths, Lamisol offers exceptional wind resistance, while the Lamisol Vento model withstands winds up to 120km/h, making it ideal for high-rise and exposed locations. Whether for commercial buildings or residential spaces, Lamisol delivers quiet operation, effective shading, and a sleek, modern aesthetic.
Lamisol® III | Highly Versatile System.
Wide Range Of Installation Options. A Perfect Fit For Most Facades.
Lamisol® with Cover
Lamisol® with CoverWhen a header niche isn’t available, the entire system housing can be discreetly concealed behind a cover, ensuring a sleek, integrated look.
On the facade
On the With specialist bracketing, Griesser Lamisol® Venetian Blinds can be installed directly onto the façade, slightly protruding for optimal positioning. A range of cover options is available to create a clean, visually seamless finish.
Lamisol® System Box
Lamisol® System BoxThe Lamisol® Venetian Blind is a self-supporting, motorised solution designed for installation on window frames with two options. It is available as a Box version for front mounting or a Profile version for installation within a niche. The guides and box are designed to sit flush at the rear and sides. Offering easy planning, quick measuring, and with pre-installed curtains, the Lamisol® System is exceptionally efficient and fast to install.
Lamisol® Vento
Lamisol® VentoBuilt for extreme wind conditions, Lamisol® Vento remains stable even in high winds up to 120km/h. Reinforced with additional cords, it provides reliable solar shading for widths up to 1500mm, ensuring consistent performance even in cyclone-strength winds.
Lamisol® 70/90 Reflect
Lamisol® 70/90 ReflectThe Lamisol® Reflect system offers multiple slat settings—three for Lamisol® 90 and two for Lamisol® 70—for precise light control. The lower zone minimises glare for screen work, the middle zone allows in soft, natural daylight, and the upper zone redirects light deeper into the room to create a comfortable, well-lit environment.
Lamisol® Fix
Lamisol® FixThe self-supporting slat design protects header insulation, reducing maintenance costs. For widths up to 2500mm, no additional housing fastenings are required, maintaining insulation integrity and minimising noise transmission. The slim Type L fixed guide with flexible beading offers a cost-effective, durable, and visually refined guidance system.
Lamisol® Fix Combined
Lamisol® Fix CombinedFor larger applications, multiple Lamisol® Fix systems can be linked together, supporting up to four units with a maximum width of 10m and total coverage of 24m². The key advantage? A single drive system operates all connected blinds, ensuring seamless functionality and ease of use.
Lamisol® III | Eco-Friendly Living. Reduce Energy Consumption.
Smart shading for a greener, more sustainable, energy-efficient future.
Sustainability is at the heart of the Griesser range, with Lamisol® III engineered to optimise energy efficiency and reduce environmental impact. By minimising heat gain and lowering reliance on artificial cooling, it helps to cut energy consumption while enhancing indoor comfort. With the option to equip sun sensors and automated controls, Lamisol® III ensures precise heat and glare management throughout the day, making it a smart, eco-friendly solution for modern architecture.
Slats: 70 mm + 90 mm
Max. Area : 10 m2
Max. Width : 4500mm
Max. Depth : 4300 mm
Daylight Control
Darkening
Wind Resistance
150 Std Colours
Features | Options
With Griesser Lamisol® III External Venetian Blind’s range of options, you can customise your system to perfectly suit your needs and preferences.
Options | Blades, Cords & Settings
Work Setting.
The Work Setting feature keeps the slats at a 48-degree angle while lowering, preventing the room from becoming too dark during operation. This ensures consistent lighting and a more comfortable indoor atmosphere throughout the adjustment process.
Reflect.
The Reflect system offers flexible light control by dividing the slats into multiple sections. The lower portion minimises screen glare, the middle section allows soft daylight to enter, and the upper slats direct light further into the space to brighten the room naturally. Available as Lamisol® 70 with two zones or Lamisol® 90 with three zones, this feature helps make the most of natural daylight for improved indoor comfort.
Kevlar-Reinforced Cords
Lamisol® is equipped with Kevlar-reinforced adjusting cords, minimising stretch and shrinkage for lasting reliability. This ensures the slats close accurately and retain optimal performance and durability over time.
ProtectPLUS | Enhanced Durability
Blinds in coastal or high-pollution areas are exposed to harsh environmental conditions that can impact longevity. The ProtectPLUS coating provides extra resistance against filiform corrosion, extending the lifespan of the slats and ensuring greater durability in challenging environments.
BiColor.
With the BiColor option, blinds can be customised with two different colours—one for the exterior, allowing them to blend with the building façade, and another for the interior, complementing the room’s decor. With over 150 standard colours, Griesser offers one of the most extensive palettes in the industry—far exceeding the 10-20 colours typically available in Australia. Exclusive to Griesser.
Note: In the BiColor version, a small strip of the exterior colour remains visible on the inner side of each slat.
Lamisol® lll | Gallery | Inside + Out
Equally Stunning Inside + Out with Griesser Unique Bi-Colour Blades.
Gallery | Exterior
Gallery | Interior
Colour | Stunning Range. 150 BiColors
Griesser BiColor. A Perfect Match Inside + Out.
Griesser’s BiColor option allows blinds to be just as striking inside as they are outside. Choose one exterior shade to blend seamlessly with your façade and another interior colour to complement your décor. With over 150 colours, you can customise your solar shading to match your architectural vision. Each colour is carefully crafted with the right shade, luminosity, and texture, featuring a matt texture and semi-gloss finish for a refined, sophisticated look.
Custom Colours for a Unique Architectural Statement.
Customise your blinds in any shade, from 50 classic GriRAL RAL colours to natural hues in the GriColor collection. Griesser’s spectrometer technology ensures a perfect match, seamlessly integrating with your design. High-performance coatings provide rich, durable colours, enhancing light control, energy efficiency, and lasting elegance.
Options | Pelment Solutions
Versatile Cover Solutions for Lamisol® External Venetian Blinds
Enhance the performance and aesthetics of Lamisol External Venetian Blinds with a range of pelmet options designed to suit various installation needs. From simple covers to fully integrated systems, these options provide durability, weather protection, and a clean, modern finish.
I Shape Cover 1.1 | Front
A sleek front cover panel that shields the blind mechanism while maintaining a minimal look. Optional end caps available.
L Shape Cover 8.1 | Front + Top
A front and top cover, perfect for wall-mounted installations, offering additional protection. Optional end caps available.
U Shape Cover 9.2 | Fully Enclosed
A fully enclosed stack designed for recessed installations, leaving a small gap between the cover and facade. For a fully sealed look, opt for a boxed solution. Optional end caps available.
Options | Box Solutions
Box Solutions | Round + Square
Sturdy extruded aluminium headboxes for a modern, clean aesthetic. The standard 76mm extrusion can be extended as needed. Available in round and square profiles.
System | Modern + Streamlined
A premium all-in-one headbox and side channel system that installs seamlessly for the neatest finish.
These pelmet options help achieve a refined, durable, and weather-protected installation for Lamisol External Venetian Blinds.

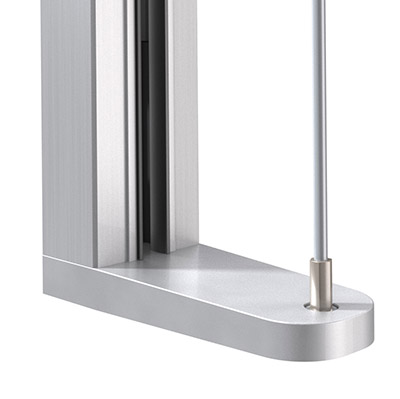

Variants | Customisation Options

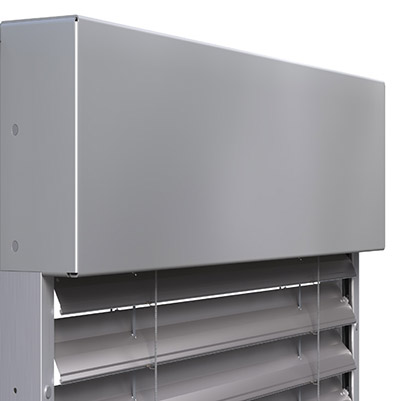

Box
The Box system integrates smoothly into the façade, requiring no additional fasteners for widths up to 4 metres. Designed for a seamless finish, both the box and guides sit flush at the rear and sides, ensuring a sleek and unobtrusive appearance.

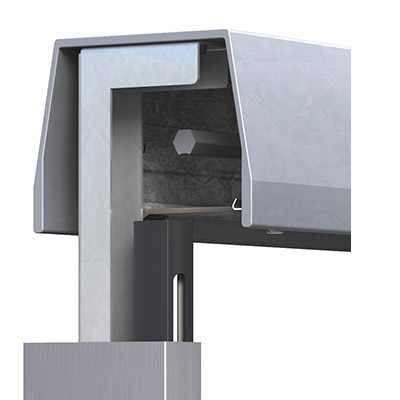

Profile
The Profile system is designed for concealed installation within a header niche, offering a discreet and streamlined look. Its self-supporting structure eliminates the need for extra fasteners for widths up to 4.5 metres, providing a secure and efficient shading solution.

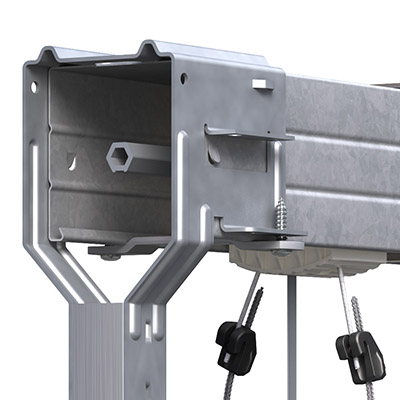

Fix
The Fix system is a self-supporting option that allows for installations up to 2.5 metres, with a maximum width of 4.5 metres. Engineered for effortless installation, it requires minimal tools, making it a quick and practical choice.

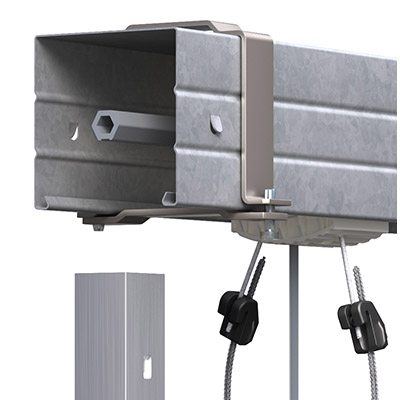

Conventional
A versatile choice for areas with limited space, the Conventional system is ideal when a header niche isn’t available. In these cases, Lamisol® can be installed beneath the header, with the option to add a cover for a refined finish.

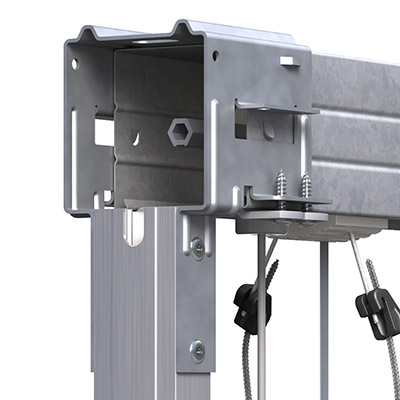

Vento | Durability
Designed for high-wind environments, Lamisol® Vento features reinforced cords that enhance stability and durability. This advanced system ensures reliable shading even in challenging weather conditions.
Vento | Performance
Engineered to withstand winds up to 120 km/h, Lamisol® Vento provides secure and effective sun protection for widths up to 1,500 mm. Its reinforced structure guarantees long-term performance in exposed locations.
Features | Technical
Lamisol® Exterior Venetian Blinds are crafted with precision engineering and premium materials, ensuring both aesthetic appeal and long-term durability. Designed for effortless maintenance and repair, these outdoor blinds undergo rigorous testing up to 20,000 cycles—double the industry standard—to guarantee exceptional performance and reliability.
Flanged Guide Holes
Specially flanged guide holes prevent sharp edges from damaging the lift tape, ensuring smooth operation and an extended lifespan
Tilt Cord + Lift Tape Alignment
A precisely aligned tilt cord and lift tape create a clean, uniform appearance, enhancing the visual appeal of the system.
Pivot Bearing
Engineered to withstand high-temperature environments of up to 80°C, the robust pivot bearing ensures consistent performance even in extreme conditions.
Reinforced Tilt Cord
Strengthened with Kevlar fibres, the reinforced tilt cord minimises shrinkage and stretching, ensuring precise slat closure and long-lasting functionality.
Stainless Steel Tilt Cord Hooks
Made from high-quality stainless steel, these durable tilt cord hooks provide exceptional strength and longevity, maintaining smooth operation over time.
Lamisol® lll | Versatile Design. Superior Performance.
Engineered for flexibility, Lamisol® III adapts seamlessly to diverse architectural needs, offering advanced light control, durability, and a sleek, modern finish.
Lamisol® III | Systems Detail
Engineered for flexibility, Lamisol® III adapts seamlessly to diverse architectural needs, offering advanced light control, durability, and a sleek, modern finish.
Built-in | System
Vertical Section: Guide Rail Fix-L
Horizontal Section: Guide Rail Fix-L
Built-in | System with Cover
Vertical Section: Guide Rail Conventional
Horizontal Section: Guide Rail Conventional
Installation | 70 System Box
Vertical Section: Lamisol® III 70 System Box
Box with slat package covered
Horizontal Section: Lamisol® III 70 System Box
Installation | 90 System Box
Vertical Section: Lamisol® III 90 System Box
Box with slat package covered
Horizontal Section: Lamisol® III 90 System Box
Slat profiles
Lamisol® III 70 System
Lamisol® III 90 System
End rails
Lamisol® III 70 System
Lamisol® III 90 System
Lamisol Vento | Wind stable
Built-in System with Cover
Vertical section
Horizontal section
Solomatic® ll | Sustainable Shading for Energy Efficiency.
Smart shading for a greener, more sustainable, energy-efficient future.
Sustainability is central to Griesser’s Solomatic® II, designed to maximise energy efficiency and reduce environmental impact. By minimising heat gain and reducing reliance on artificial cooling, it lowers energy consumption while improving indoor comfort. With optional sun sensors and automation, it ensures precise heat and glare control, making it a smart, eco-friendly choice for modern architecture.

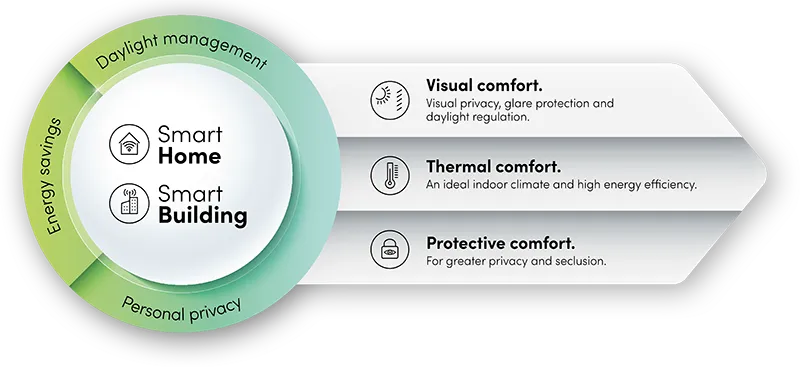

Solomatic® II | Control + Connectivity
Smart Controls for Comfort and Efficiency
Flexible Control for Any Space
Solomatic® II offers versatile control systems, from a hand-held remote to a fully automated building management system. Adjust blinds based on time of day, sun position, or weather conditions, ensuring optimal comfort and energy efficiency.
Year Round Thermal Comfort
Griesser’s intelligent shading system automatically adjusts, ensuring the right balance of heat and light, reducing cooling costs in summer and retaining warmth in winter. This minimises energy consumption while keeping indoor spaces comfortable.
Enhanced Privacy + Visual Comfort
With Solomatic® II, you can adjust your blinds to shield against unwanted views while still allowing natural light to enter. This ensures a comfortable living space where you can relax without compromising on daylight or security.
Scalable Automation for Homes + Businesses
From small homes to large commercial buildings, Solomatic® II provides custom automation solutions. Griesser’s smart shading systems optimise comfort, efficiency, and convenience at every level.
KNX & gBUS | Advanced Commercial Control
For commercial buildings, Griesser’s KNX and gBUS systems integrate seamlessly with large-scale automation
networks, using solar tracking and horizon limitation to optimise heat and light management, ensuring consistent comfort and energy efficiency across multiple levels.

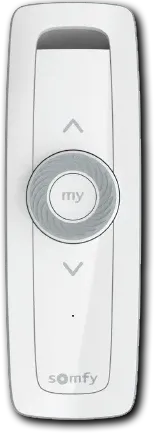

Somfy | Smart Residential Automation
For homes, the Somfy remote control system provides wireless, user-friendly operation, allowing seamless control over single blinds or multiple zones for effortless shading and energy efficiency.
Downloads
Brochures
External Venetian Blinds
Lamisol
Lamisol System
Technical
Lamisol Tech Data Sheet
ProtectPLUS
Energy Transmittance by Colour
Certification
Wind Classes
Fire Protection Standards
Corrosion Classes
Environmental Declaration
Sustainability Declaration
CAD
Available on Request
