Simply Cell | Pre-Tensioned | Honeycomb Blinds

Cleverly designed to operate easily without a cord via small handles

Honeycomb | Vertical + Special Shapes

Innovative technology meets groundbreaking design with Blinds by Peter Meyer’s new and improved Honeycomb blinds system.

Our Simply Cell Pre-tensioned Honeycomb Cellular blinds range receiving innovative design improvements. Masterfully hidden mounting brackets on Simply Cell pretensioned Honeycomb Celular blinds sit snuggly in the profile enabling easy removal. The closed profile is easy to clean and underlines the ‘purist’ trend with clean, elegant lines. All profiles have the same aesthetic, both standard or special shape.

The totally new Simply Cell fabric collection includes 190 fabrics to suit our pre-tensioned Honeycomb Cellular blinds.

honeycomb blinds - vertical and special shape

New Release
Honeycomb Blind | New System

Note: ‘System’ video shows Pleated Blinds. Our Honeycomb Cellular Blind Fabrics use an identical system.

New Release
Honeycomb Blind | 190 New Fabrics

New System Release
Pre-Tensioned | Honeycomb Blind | Selector

honeycomb blinds VS1

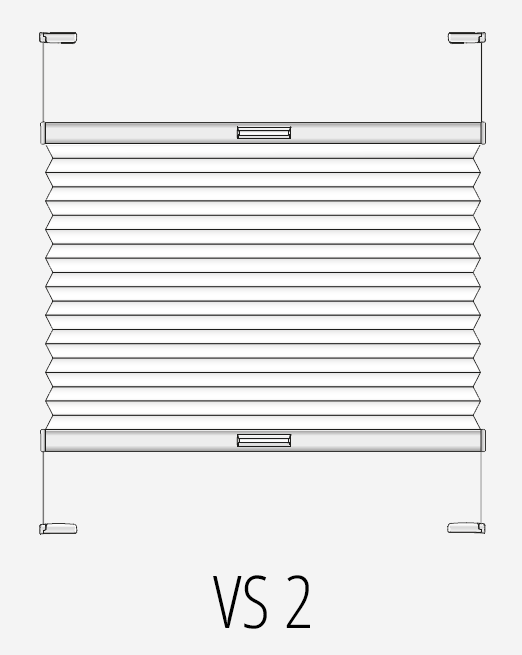

honeycomb blinds VS2

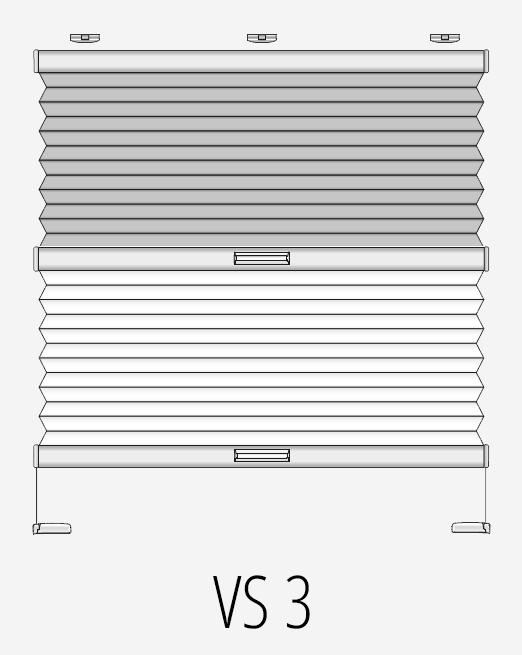

honeycomb blinds VS3
honeycomb blinds VS3 SD
honeycomb blinds VS2 slide comfort
honeycomb blinds VS2 slide

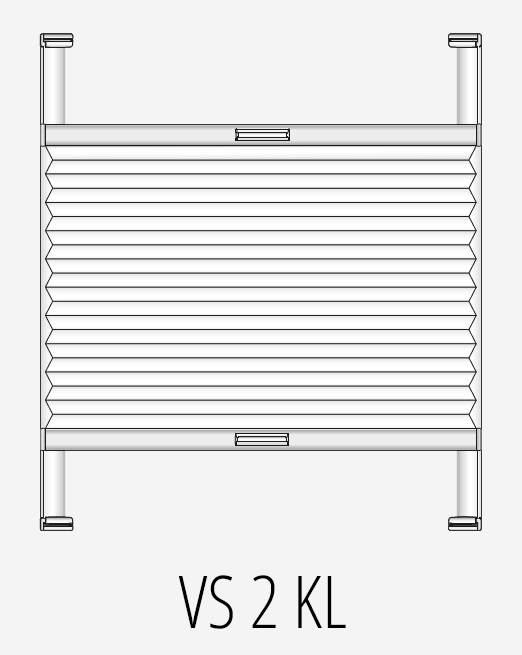

honeycomb blinds VS2 KL
honeycomb blinds VS4
honeycomb blinds VS4 S

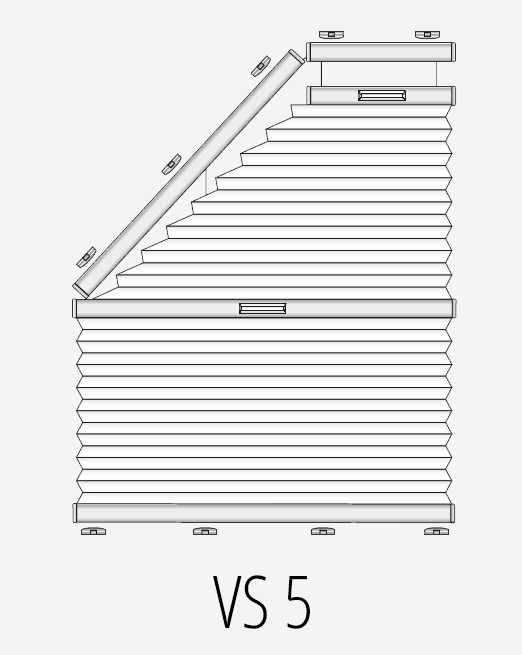

honeycomb blinds VS5

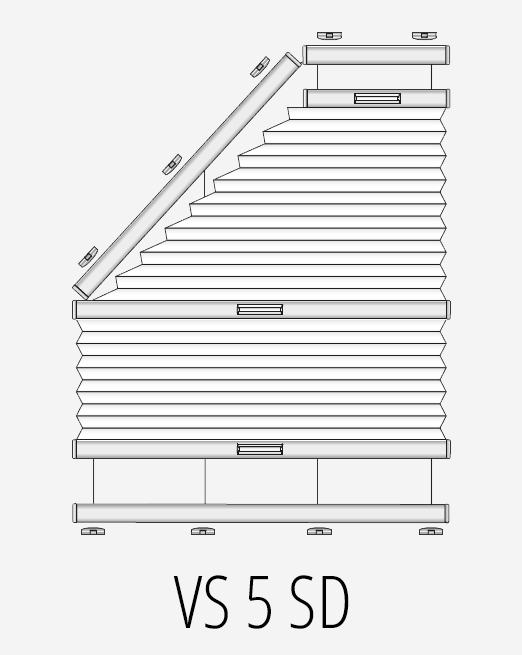

honeycomb blinds VS5 SD
honeycomb blinds VS8

New
Pre-Tensioned
| Honeycomb Blind | Features

Operation
Wand + Hand

Product Information
Range: S-M
Fitting: Face, Recess, Screwless

Features
Pre-Tensioned Top Down + Bottom Up
Day/Night
Special Shapes
Screwless Fitting
Magnetic Top Shoe
Ideal Behind Shutters
Designer Operating Handles
Profile Operation

Colours
Multiple Colour Ranges
Matt White, Silver, Matt Black-Brown, Bronze, Matt Anthracite, Silver Brushed | VS 2 Only (extra charge), Matt Grey | VS 2 Slide, VS 2 Slide Comfort + DF Comfort Only.

Fabrics
Sheer, Screen, Light Filtering,
Dimout + Blockout

Pre-tension honeycomb blinds features

Pre-Tensioned | Honeycomb Blind | Showcase

Blinds by Peter Meyer

New
VS 2 Deluxe
| Pre-Tensioned | Honeycomb Blind

Encompasses all the optional extras for the standard VS2 model, including:
Anti-twist item for the tension shoe & upgraded designer handle

As per the VS standard models, it also:
Secures to the window frame via the tension shoes, includes the standard magnet at the top to help with a strong connection when operating the top rail.

Ideal for:
Smaller windows, back of doors, tilt and turn style windows up to a max of 15 degrees inward tilt, extra light blockage behind shutters without operating handles, commercial & investment properties with the adhesive solution on our rails leaving no residue behind after removal – even after several years attached to the window.

VS 2 Deluxe Honeycomb Blind

The VS 2 DELUXE is the high-end blind version and always includes:

  1. Anti twist items for all four tension shoes
  2. Magnetic fixing for the upper operating rail
  3. A high quality, pre-assembled design handle
VS 2 deluxe size and colours
VS 2 deluxe pack heights
VS 2 dimensions

New

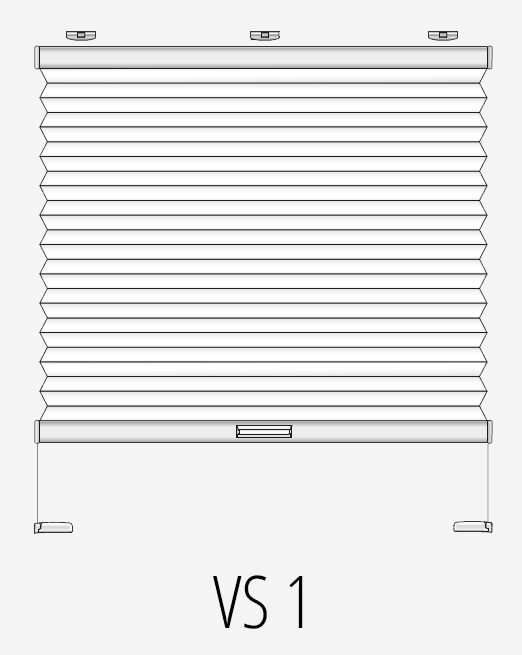

VS 1
| Pre-Tensioned Blinds

Fixed at the top and secured on the sides by pre tensioned guide cords.
Bottom rail operates up and down.

Ideal for:
Smaller windows, back of doors, tilt and turn style windows up to a max of 15 degrees inward tilt and extra light blockage behind shutters .

VS 2 pre-tensioned blinds
VS 1 size tables
VS 1 dimensions

Note
This blind style is designed for windows at a maximum angle of 15° !

VS 1 colours

New
VS 2
| Pre-Tensioned | With Magnetic Fixing

Secured on the top and bottom by pre-tensioned guide cords.
The bottom and top rail both operate independently up and down.
Magnets on the top shoes help secure the top rail into place when operating

Ideal for:
Sash windows where you can drop the top down and allow airflow in while maintaining privacy from below, back of doors, tilt and turn style windows up to a max of 15 degrees inward tilt and extra light blockage behind shutters .

VS 2 pre-tensioned blind with magnetic fixing
VS 2 size tables
VS 3 dimensions

Note
Magnetic fixing on at the top.
This blind style is designed for windows at a maximum angle of 15° !

VS 3 colours

New
VS 3
| Pre-Tensioned Blinds

Holds 2 fabrics.
Day/night solution and combining a blockout fabric with a sheer or light filtering fabric.
Fixed at the top and secured on the sides by pre tensioned guide cords.
Bottom rail operates up and down.

Ideal for:
Smaller windows, back of doors and tilt and turn style windows up to a max of 15 degrees inward tilt and behind shutters to give additional light blockage.

VS 3 pre-tensioned blinds
VS3 sizes and heights
VS3 dimensions

Note
This blind style is designed for windows at a maximum angle of 15° !

VS3 colours

New

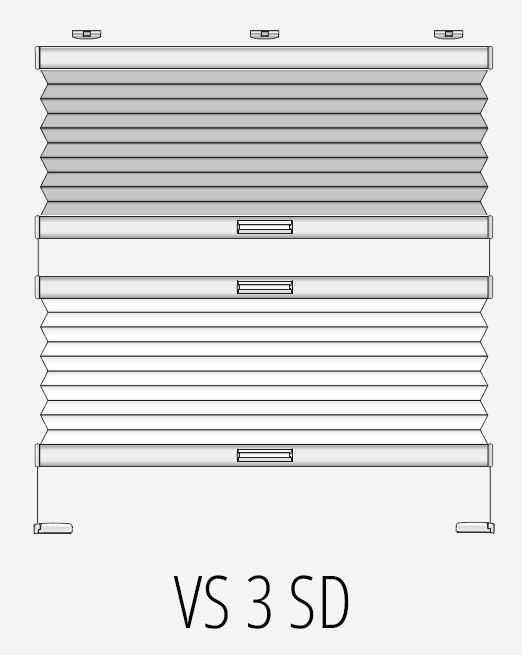

VS 3 SD
| Pre-Tensioned

Holds 2 fabrics.
Day/night solution by combining blockout with sheer or lightfiltering fabrics.
Fixed at the top and secured on the sides by pre tensioned guide cords.
Bottom rail operates up and down.
Splits in the middle allowing for airflow, should your window have mid operation.

Ideal for:
Smaller windows, back of doors, tilt and turn style windows up to a max of 15 degrees inward tilt and extra light blockage behind shutters .

VS3 SD pre-tensioned blinds
VS3SD size and heights
VS3SD dimensions

Note
Gap between the operating rails possible.
Unless specified otherwise, the black out fabric is always at the top.
This blind style is designed for windows at a maximum angle of 15° !

VS3SD colours

New

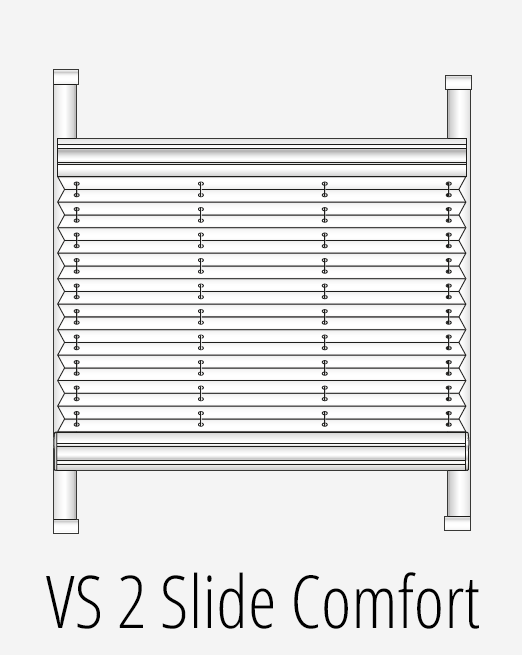

VS 2 Slide Comfort
| Pre-Tensioned

with side guide channels and handle bar – screwless fitting

Screwless fitting by securing to the glass via strong double sided tape.
Effortlessly glides up and down along the glazing profile.
No operating handles keep this minimal profile close to the glass.
Easily avoids handles and locks.
Due to the finger moulded rail design, this system can be made larger than the VS2 Slide products.

Ideal for:
Smaller windows, back of doors, tilt and turn style windows up to a max of 15 degrees inward tilt, extra light blockage behind shutters without operating handles. Commercial & investment properties with the adhesive solution on our rails leaving no residue behind after removal – even after several years attached to the window.

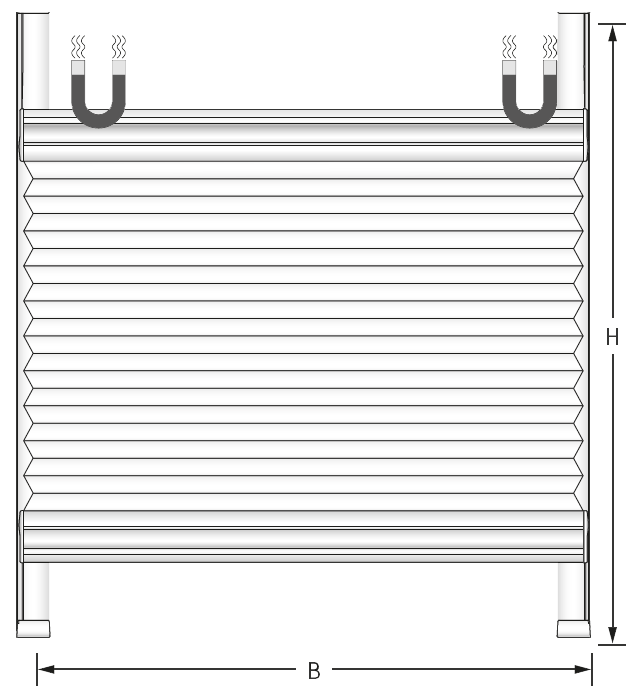

VS2 Slide Comfort pre-tensioned blinds

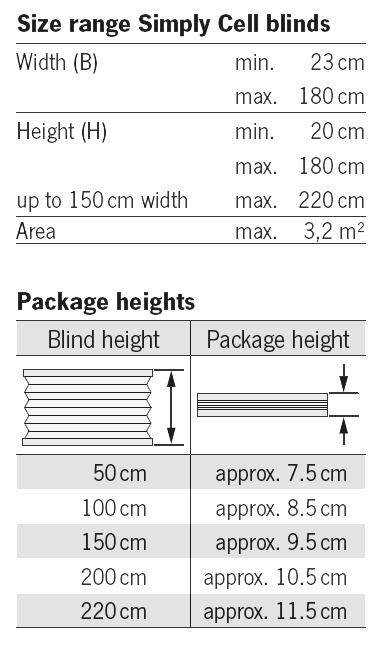

VS2 slide comfort size and height
VS2 slide comfort dimensions

Note
Fitted with adhesive rail directly on the glass pane.
No drilling or screwing required.
Magnetic fixing only at the top.
Only possible with magnetic fixing.
This blind style is designed for windows at a maximum angle of 15° !

VS2 slide comfort colours

New

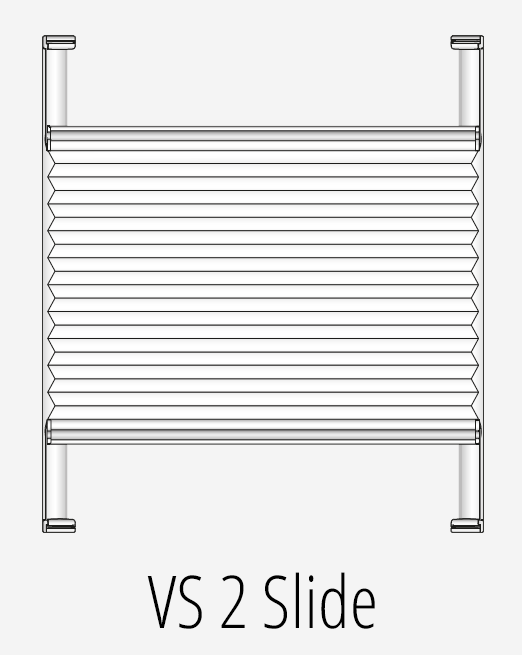

VS 2 Slide
| Pre-Tensioned

with side guide channels and handle bar – screwless fitting

Encompasses all the optional extras for the standard VS2 model, including:
Anti-twist item for the tension shoe.
Upgraded designer handle.

As per the VS standard models, it also:
Secures to the window frame via the tension shoes.
Includes the standard magnet at the top to help with a strong connection when operating the top rail.

Ideal for:
Smaller windows, back of doors, tilt and turn style windows up to a max of 15 degrees inward tilt, extra light blockage behind shutters without operating handles. Commercial & investment properties with the adhesive solution on our rails leaving no residue behind after removal – even after several years attached to the window.

VS2 Slide pre-tensioned blinds
VS2 Slide size and heights
VS2 slide dimensions

Note
Fitted with adhesive rail directly on the glass pane.
No drilling or screwing required.
Magnetic fixing only at the top.
Only possible with magnetic fixing.
This blind style is designed for windows at a maximum angle of 15° !

VS2 slide colours

New
VS 2 KL
| Pre-Tensioned | Screwless fitting

The smallest top and bottom profile compared to the “Comfort and VS2 Slide” models.
Screwless fitting by securing to the glass via strong double sided tape.
Effortlessly glides up and down along the glazing profile.
Operated with handles, so if the window is in a hard to reach location an operating wand can be used to move the blind up and down.

Ideal for:
Hard to reach windows, smaller windows, back of doors, tilt and turn style windows up to a max of 15 degrees inward tilt and extra light blockage behind shutters without operating handles. Commercial & investment properties with the adhesive solution on our rails leaving no residue behind after removal – even after several years attached to the window.

VS2KL pre-tensioned blinds
VS2KL size and height
VS2KL dimensions

Note
Fitted with adhesive rail directly on the glass pane.
No drilling or screwing required.
Magnetic fixing only at the top.
This blind style is designed for windows at a maximum angle of 15° !

VS2KL colours

New

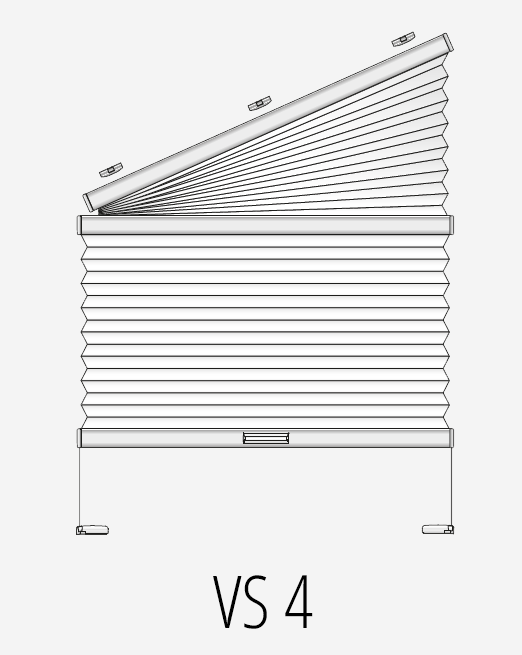

VS 4
 | Pre-Tensioned | Shaped

Shaped Pretension blind.
Operates up to the mid rail only.
Comes with an operating handle so the bottom rail can easily be moved with an operating rod.

VS4 pre-tensioned shaped blinds
VS4 size and height
VS4 dimensions

Note
The tall height (H1) can either be on the left or on the right.
This blind style is designed for windows at a maximum angle of 15° !

VS4 colours

New

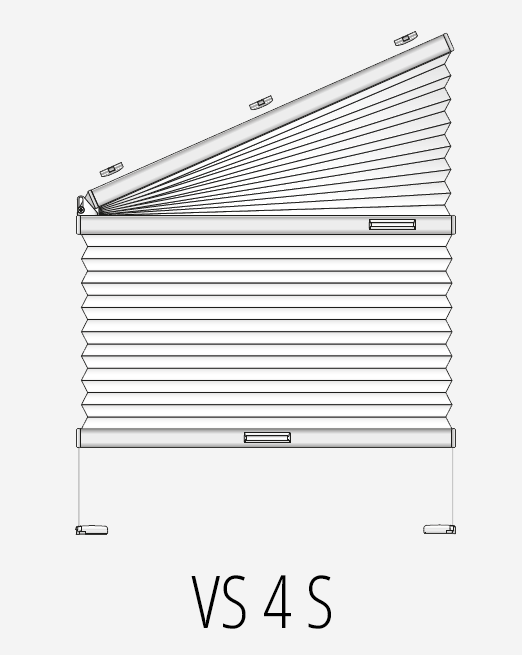

VS 4 S
| Pre-Tensioned | Shaped

Same as the VS 4 blind but the whole blind stack can operate up to the diagonal angle with the limitation of a 35 degree maximum angle.

Refer to “W” on the illustration.

VS4S pre-tensioned shaped blinds
VS4S size and height
VS4S dimensions

Note
The tall height (H1) can either be on the left or right.
The hanging can be pushed up to the sloped rail.
The middle rail is not movable with an operating cord.
Consider adaptors to level angled window rebates.
This blind style is designed for windows at a maximum angle of 15° !

VS4S colours

New
VS 5
 Pentagon | Pre-Tensioned | Shaped

Pretension Pentagon shaped blind that can stack on the bottom of the window.
Operated via hand or wand control.
Utilises the diagonal rail to hide the unique “Lay Flat” spring which keeps the fabric flat against the stack on the bottom.

VS5 pre-tensioned pentagon blind
VS5 size and height
VS5 dimensions

Note
*The slope may be either left or right.
B1 + B1 l. (r.) always add up to the width of B.
Fixed tension cords.
This blind style is designed for windows at a maximum angle of 15° !

VS5 colours

New
VS 5 SD
Pentagon | Pre-Tensioned | Shaped

Pretension Pentagon shaped blind.
Operate from the top down or bottom up.
Can stack on the bottom of the window.
Operated via hand or wand control.
Utilises the diagonal rail to hide the unique “Lay Flat” spring which keeps the fabric flat against the stack on the bottom.

VS5SD pre-tensioned pentagon blinds
VS5SD size and height
VS5SD dimensions

Note
*The slope may be either left or right.
B1 + B1 l. (r.) always adds up to the width of B.
Fixed tension cords.
This blind style is designed for windows at a maximum angle of 15° !

VS5SD colours

New

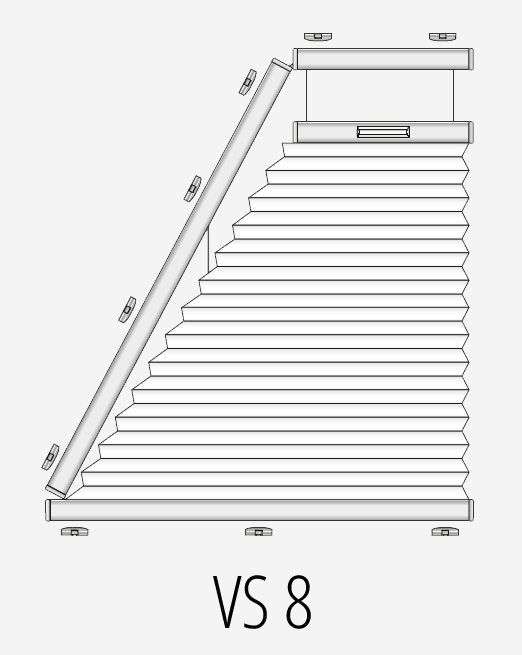

VS 8
 Trapezium| Pre-Tensioned | Shaped

Trapezoidal shapes pretension blind for those really tricky shaped windows.
Operated from the top down.
Utilises the diagonal rail to hide the unique “Lay Flat” spring which keeps the fabric flat against the stack on the bottom.

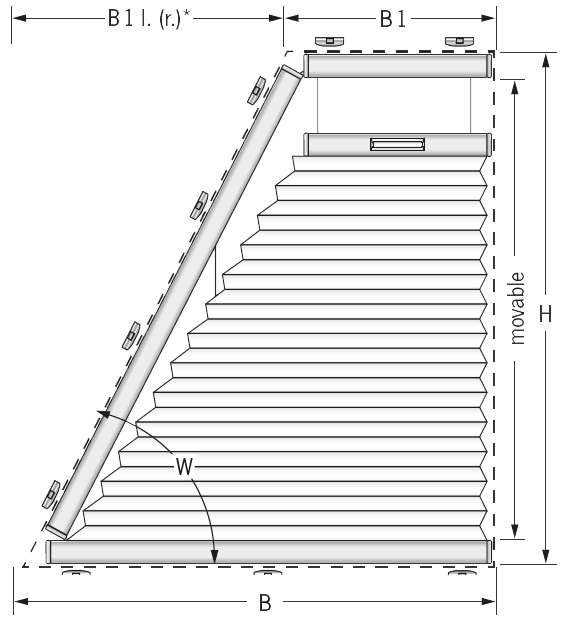

VS8 pre-tensioned trapezium blinds

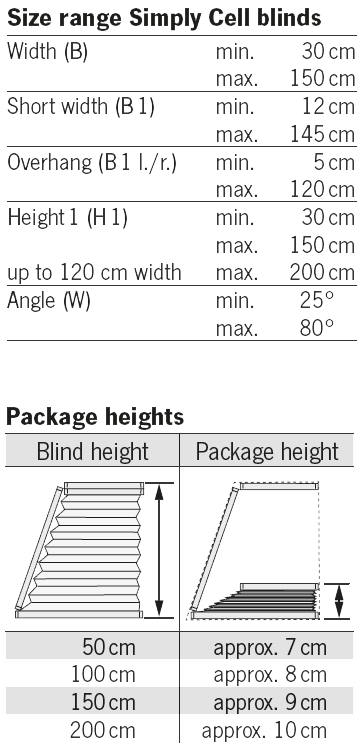

VS8 size and height
VS8 dimensions

Note
*The slope may be either left or right.
B1 + B1 l. (r.) always add up to the width of B.
Fixed tension cords.
This blind style is designed for windows at a maximum angle of 15° !

VS8 colours
pre-tensioned honeycomb blinds

New
Operation
| Pre-Tensioned Blind | Options

Depending on the model type, there are 2 different operating handles and handle bars to choose from.
The operating options depend on the model type selected.

operating handle

Operating handle

Orders without any remarks are delivered by default with this operating handle.
Operation with operating rod possible.

handle bar VS 2 slide

Handle bar VS 2 Slide

Orders for VS 2 Slide blinds are generally delivered with the handle bar.
Due to the handle bar there are no protruding operating elements.
Operation with operating rod possible.

design handle

Design handle (extra charge)

Visual upgrade by use of a powdercoated design handle made of high-quality metal alloy.
Operation with operating rod possible.

handle bar VS 2 slide comfort

Handle bar VS 2 Slide Comfort

Orders for VS 2 Slide Comfort blinds are generally delivered with the handle bar. Due to the handle bar there are no protruding operating elements. Operation with operating rod possible. Great for behind shutters to maximise light block.

New
Fitting Options
| Pre-Tensioned Blinds

There are several ways to fit Simply Cell blinds. Depending on structural conditions, desires, needs and requirements, the appropriate fitting method is chosen. The made-to-measure Simply Cell blinds can be fitted to almost any window or door.

Tension shoe

Tension shoe

for fitting in the glazing rebate or fitting bracket.

Clip (mounting clip)

Clip (mounting clip)

for fitting on glazing rebate, bracket or ceiling fitting.

Beading bracket

Beading bracket

for fitting on the glazing bead.

Bracket

Bracket

for fitting on the window frame or on the wall.

Clamp bracket

Clamp bracket

for screwless fitting on the window frame.

Adhesive rail VS 2 Slide and VS 2 Slide Comfort

Adhesive rail VS 2 Slide and
VS 2 Slide Comfort

for screwless fitting on the glass
with side guide and handle bar.

clamp bracket slim

Clamp bracket slim

for screwless fitting on the window frame.
the blind runs inside the glazing rebate.

Adhesive rail VS 2 KL

Adhesive rail VS 2 KL

for screwless fitting on the glass.

Tension shoe base with adhesive plate

Tension shoe base with adhesive plate (VS 2 only)

for fitting on the glazing rebate with adhesive plates.
the blind runs inside the glazing rebate.

Mounting plate (VS 2 only)

Mounting plate (VS 2 only)

for fitting on the glazing rebate even with small rebate depth.
the blind runs inside the glazing rebate.

New
Colours
| Rail + Plastic Components

Rail colour

Plastic colour

20 white matt
(powder-coated)

20 white

02 silver
(anodised)

03 grey

05 black-brown matt
(powder-coated)

05 black-brown

26 bronze
(anodised)

26 bronze

24 anthracite matt
(powder-coated)

24 anthracite

09 silver brushed
(brushed and anodised)
VS 2 only (extra charge)

03 grey

03 grey matt
(powder-coated)
VS 2 Slide, VS 2 Slide Comfort and DF
Comfort only

03 grey

New
Honeycomb Fabrics Range
| 190 Designer Colour + Patterns

Australia's most comprehensive collection of Honeycomb Cellular Blind fabrics.

Our stunning new collection of Honeycomb fabrics offers  a solution for ever Residential or Commercial application. Architects, Designers & Decorators can select from the 190 on-trend fabrics to compliment all architectural & design styles.

The honeycomb & cellular construction of our Simply Cell fabrics provides very significant thermal and energy cost saving benefits.

Simply Cell | Honeycomb Cellular Range

simply cell fabrics range
simply cell fabrics brochure

Downloads

Blinds by Peter Meyer complete brochure

Product & Technical Brochure

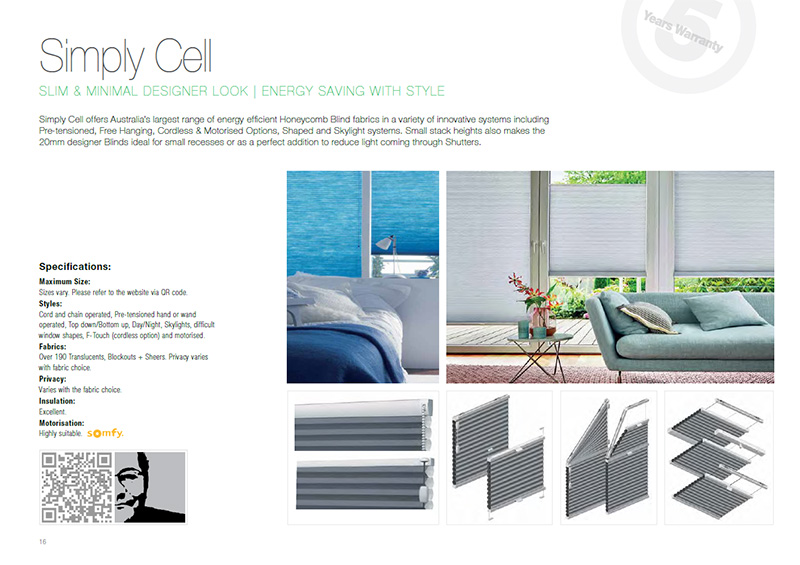

Simply Cell Honeycomb Blind System brochure

Honeycomb Cellular Blind System

Simply Cell technical brochure

Simply Cell Technical

Exceptional Quality + Build Standards

  • Blinds by Peter Meyer use only the finest components:
  • Cutting edge technology & build quality
  • Backed by Peter Meyer’s 5 year warranty
  • Plus the Peter Meyer renowned level of service
5 year warranty

Pin It on Pinterest

Share This
